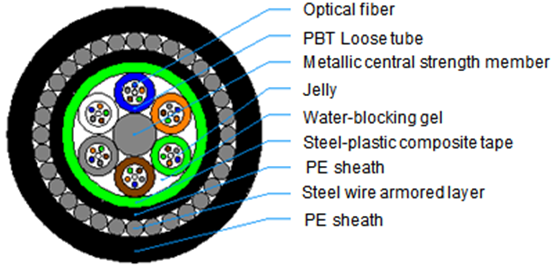

GYTS33 optical cable consists of single-mode or multimode optical fibers which are protected by loose tubes. Loose tubes (and filler rod) are stranded around the single metallic central strength member to form a compact and circular cable core, and the gap in the cable core is fully filled with water blocking compound. Steel-plastic composite tape and steel wire armored layer provide the cable compressive property.
Product type: GYTS33
Application: Trunk line and local network communication
Product description:
Optical fiber, loose tube design, metallic central strength member, SZ stranded core filled with gel, double sided plastic coated steel tape PE bonded inner sheath, Galvanized steel wire armor, PE outer sheath.
Laying mode: Direct burial/underwater
Operating temperature:-40℃～+70℃
|
Cores |
Minimum bending radius (mm) |
Minimum allowable tensile force(N) |
Minimum allowable crush resistance(N/100mm) | |||
|
static |
dynamic |
short-term |
long-term |
short-term |
long-term |
|
|
2～864 |
15D |
30D |
10000 |
4000 |
5000 |
3000 |
Note: D means the outer diameter of the optical cable
1,The SZ-stranded loose tube design isolates fibers from installation and environmental rigors.
2,The water blocking gel filled core design provides the cable excellent water-proof performance and moisture-resistance.
3,steel wire armor possesses the good tensile strength, and provides the cable well compression strength, which avoids the maintenance.
