Direct Burial Double Armoured Fiber Optic Cable For Communication

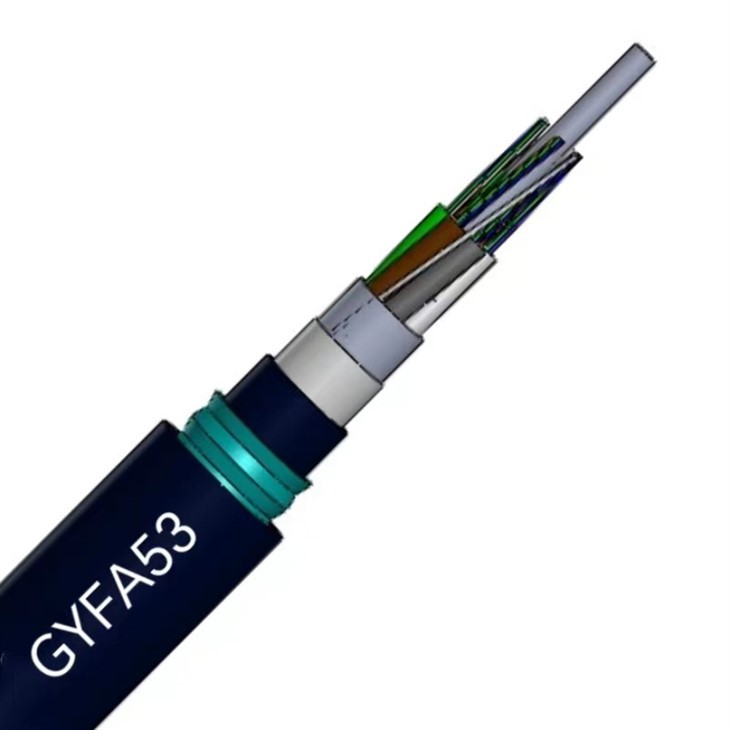

GYFA53 optical cable consists of single-mode or multimode optical fibers which are protected by loose tubes. Loose tubes are made of high modulus plastic and filled with compound to protect the optical fibers. Loose tubes (and filler rod) are stranded around the single non-metallic central strength member to form a compact and circular cable core, and the gap outside the strength member and inside the cable core is fully filled with dry water blocking yarn and tape. Double sided plastic coated aluminum tape polyethylene bonded inner sheath, double sided plastic coated steel tape polyethylene bonded outer sheath.



Application: Trunk line and metropolitan area network

Product description:

Optical fiber, loose tube design, non-metallic central strength member, the gap outside the strength member and inside the cable core is fully filled with dry water blocking yarn and tape, double sided plastic coated aluminum tape polyethylene bonded inner sheath, double sided plastic coated steel tape polyethylene bonded outer sheath.

Laying mode: Direct burial

Operating temperature:-40℃～+70℃

Note: D means the outer diameter of the optical cable

1,Low transmission attenuation and dispersion.

2,Reasonable design, precise control of excess length of fibers in the loose tube and optimum cabling process provides the cable excellent mechanical and environmental properties.

3,The SZ-stranded, loose tube design isolated fibers from installation and environmental rigors.

4,Dry water blocking materials are used outside the strength member and inside the cable core to ensure the moisture-proof and water blocking effect of the optical cable, while improving its cleanliness and convenience of use..

5,Double metal strip longitudinally wrapped with double layer sheath, with strong lateral pressure resistance and ability to prevent gunshot and rodent damage.
