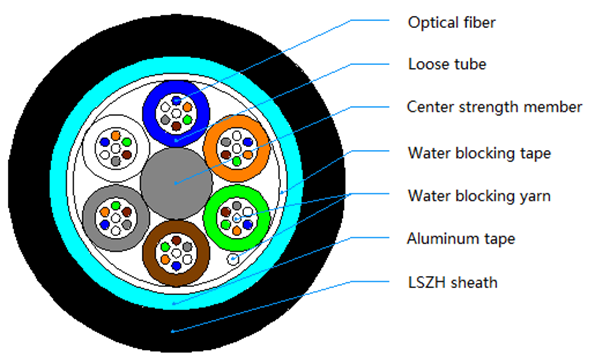

GYAH optical cable consists of optical fibers which are protected by loose tubes. Loose tubes are made of high modulus plastic and filled with Special dry water blocking material. Loose tubes (and filler rod) are stranded around the single metallic central strength member to form a compact and circular cable core, Water blocking tape and yarn are used outside the cable core for water blocking. double sided plastic coated aluminum tape polyethylene bonded low smoke and halogen-free flame retardant polyolefin sheath.. The optical cable complies with IEC standards and has good quality.
Product type: GYAH
Application: Trunk line and metropolitan area network
Product description:
Optical fiber, dry loose tube, metal center strength member, dry cable core structure, double sided plastic coated aluminum tape bonded low smoke and halogen-free flame retardant polyolefin sheath.
Laying mode: Duct/Aerial
Operating temperature:-40℃～+70℃
|
Cores |
Minimum bending radius （mm） |
Minimum allowable tensile force（N） |
Minimum allowable crush resistance（N/100mm） | |||
|
static |
dynamic |
short-term |
long-term |
short-term |
long-term |
|
|
2～864 |
10D |
20D |
1500 |
600 |
1000 |
300 |
Note: D means the outer diameter of the optical cable
1、Low transmission attenuation and dispersion.
2、Reasonable design, precise control of excess length of fibers in the loose tube and optimum cabling process provides the cable excellent mechanical and environmental properties.
3、The SZ-stranded, loose tube design isolated fibers from installation and environmental rigors.
4、Water blocking yarn and tape ensure the moisture-proof and water blocking effect of the optical cable.
5、Excellent flexibility and bending resistance of optical cables.
6、Aluminum strip longitudinally wrapped cable core for better moisture blocking effect of optical cables.
