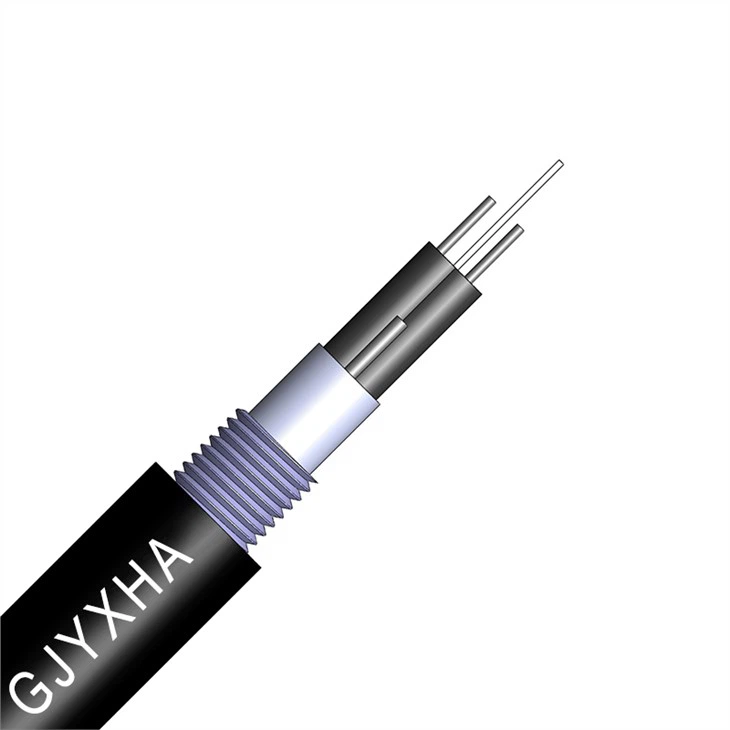

Bow-type Optical Fiber Duct Cable GJYXHA







Bow-type indoor optical cable is used in the center which is suitable for indoor communication. Aluminum and outer sheath are applied in round shape, making it convenient of duct installation.



The GJYXHA fiber optic cable is a type of composite cable suitable for indoor use. It features a central strength member that provides support for the cable's components and increases its durability. The cable is made up of a single-mode or multi-mode fiber optic core, an aramid yarn strength member, and a PVC or LSZH outer jacket. The outer jacket protects the cable from environmental factors such as moisture, rodents, and fire. The GJYXHA cable is widely used in telecommunication networks, broadband data transmission, and local area networks. Its high transmission bandwidth capacity and low attenuation loss make it an ideal choice for high-speed applications.

Product type: GJYXHA

Application: FTTH, access net work

Product description:

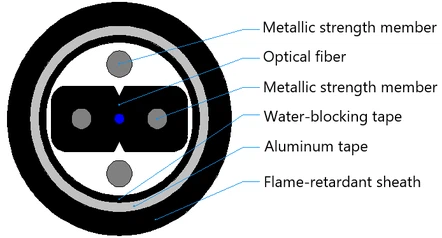

GJYXHA (metallic strength member, optical fiber in bow-type cable, aluminum moisture barrier, LSZH sheathed indoor optical cable) consist of bow-type cable, and metallic strength members which provide the cable excellent tensile strength. Aluminum tape is used as moisture barrier, LSZH sheath make it more safe when used indoor.

Operating temperature: -30℃～+70℃

Note: D means the outer diameter of the optical cable

1、Low transmission loss and dispersion.

2、Precise fiber excess length control ensures excellent tensile and temperature performance of optical cable.

3、Metallic strength members inside and outside the bow-type cable provide excellent mechanical properties for the optical cable

4、Dry-type optical cable is lightweight and easy to install.
