The optical fibers of the central tube type air blown micro cable are placed into a loose tube made of high modulus material, with non-toxic and harmless waterproof compound filled. Strength member aramid yarn is laid outside the loose tube to provide necessary tensile strength, and then extruding a low friction coefficient sheath. The optical cable is small in size, light in weight and with moderate hardness. It is used as the incoming optical cable of distribution section in FTTH network, and air blowing method is used to connect the branch point of optical cable and the user access point. It is also application in backbone network, metropolitan area network and access network.
Product type: GCYFXTY
Application: Trunk line, metropolitan area network, access network
Product description:
Optical fiber , Center tube loose tube, Low friction polyethylene sheath
Laying mode: Air blowing in duct
Operating temperature:-40℃～+70℃
Cores | Minimum bending radius （mm） | Minimum allowable tensile force（N） | Minimum allowable crush resistance （N/100mm） | |||
static | dynamic | short-term | long-term | short-term | long-term | |
2～288 | 10D | 20D | 0.5G | 0.15G | 500 | 150 |
Note: D means the outer diameter of the optical cable
1、Low transmission attenuation and dispersion.
2、Reasonable design,precise control of excess length of fibers in the loose tube and optimum cabling process provide the cable excellent mechanical and environmental properties.
3、Low friction coefficient outer sheath provides good air blowing effect

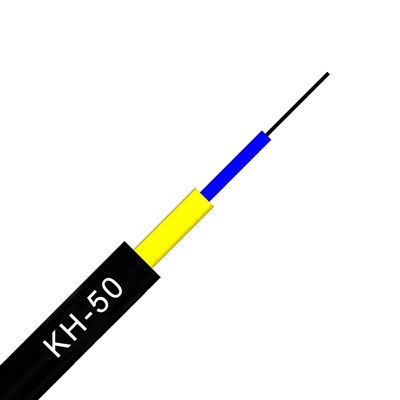

Hot Tags: 2～864 cores semi dry air blown micro optical cable gcyfxty, 4-144 Cores Indoor Distribution Cable GJBFJV, Non Metallic High Temperature Resistant Heat Sensitive Optical Fiber Cable KH-005, BBU RRU Connection Optical Fiber Cable GJYFJH, Invisible Optical Cable GJI, High Temperature Resistant Heat Sensitive Armored Optical Fiber Cable GJJGF, Hybrid Optical and Electrical Cable for Small Base Station GDJH
